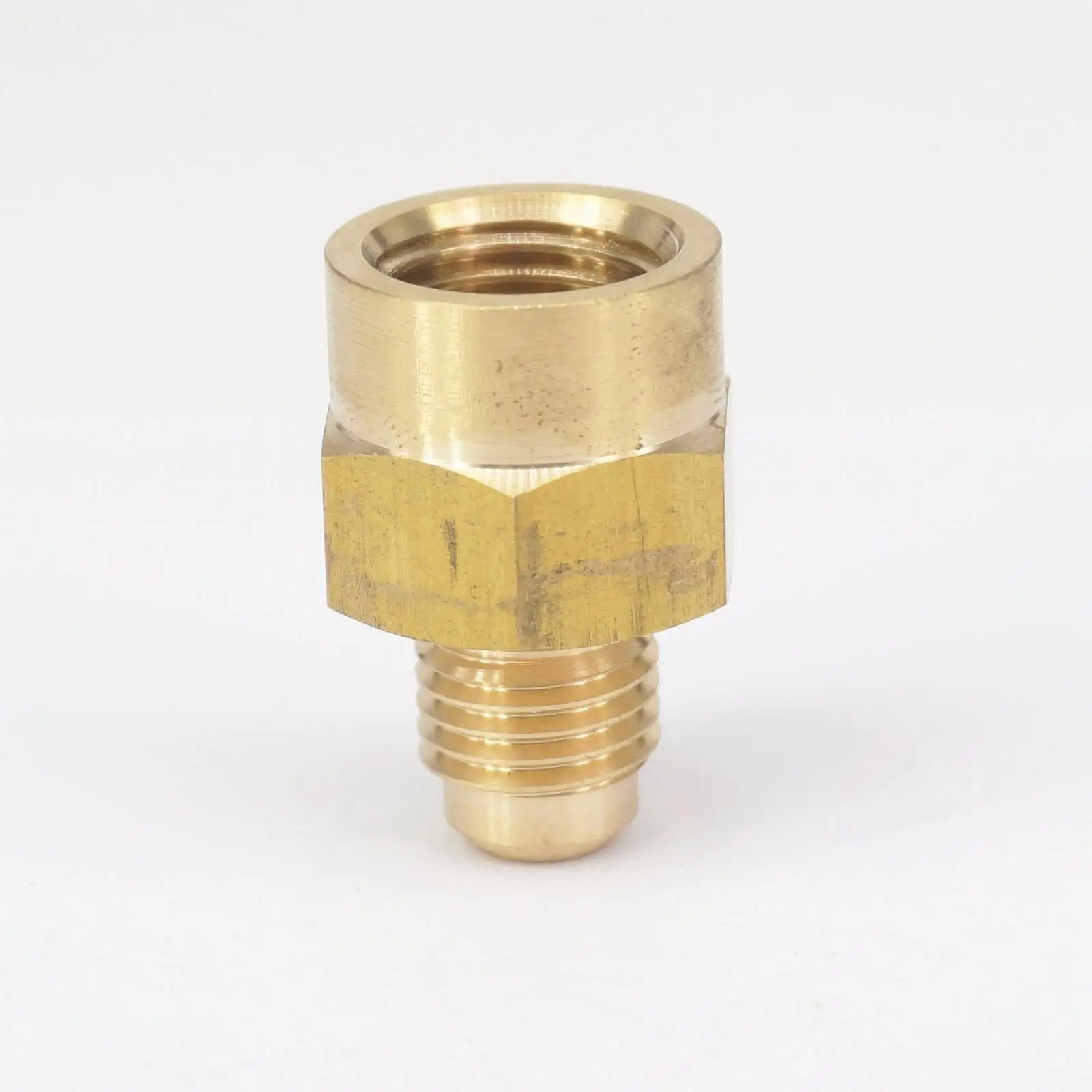

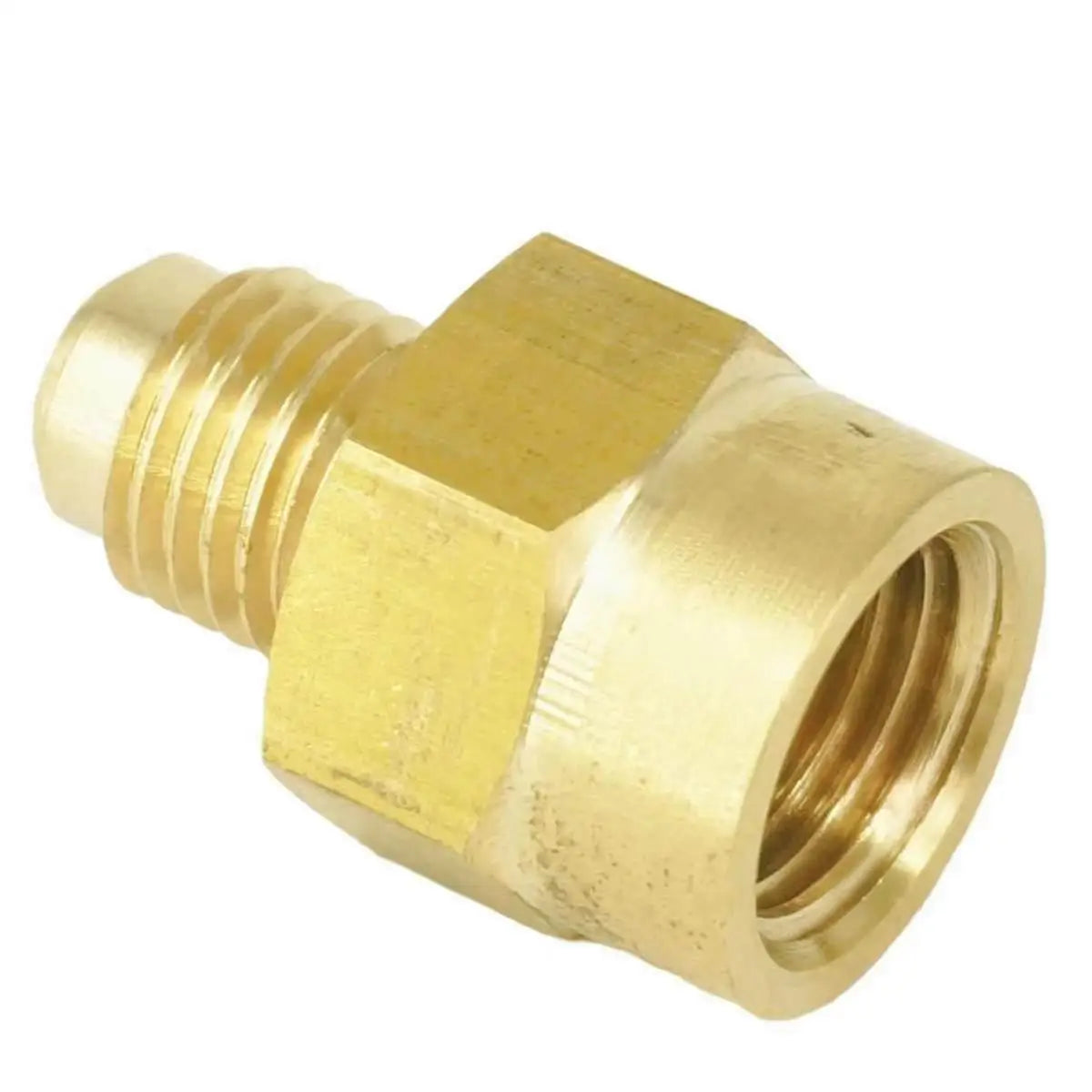

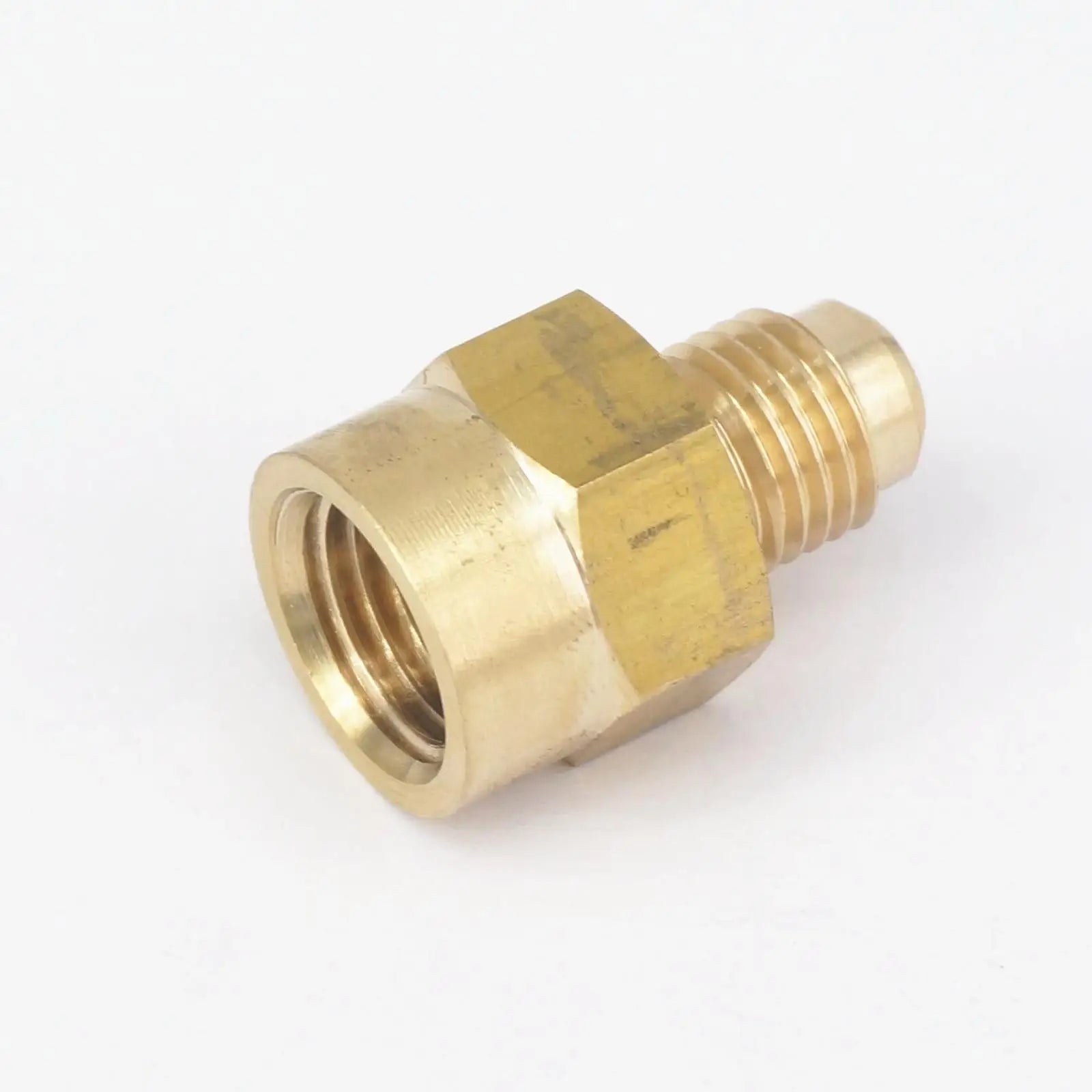

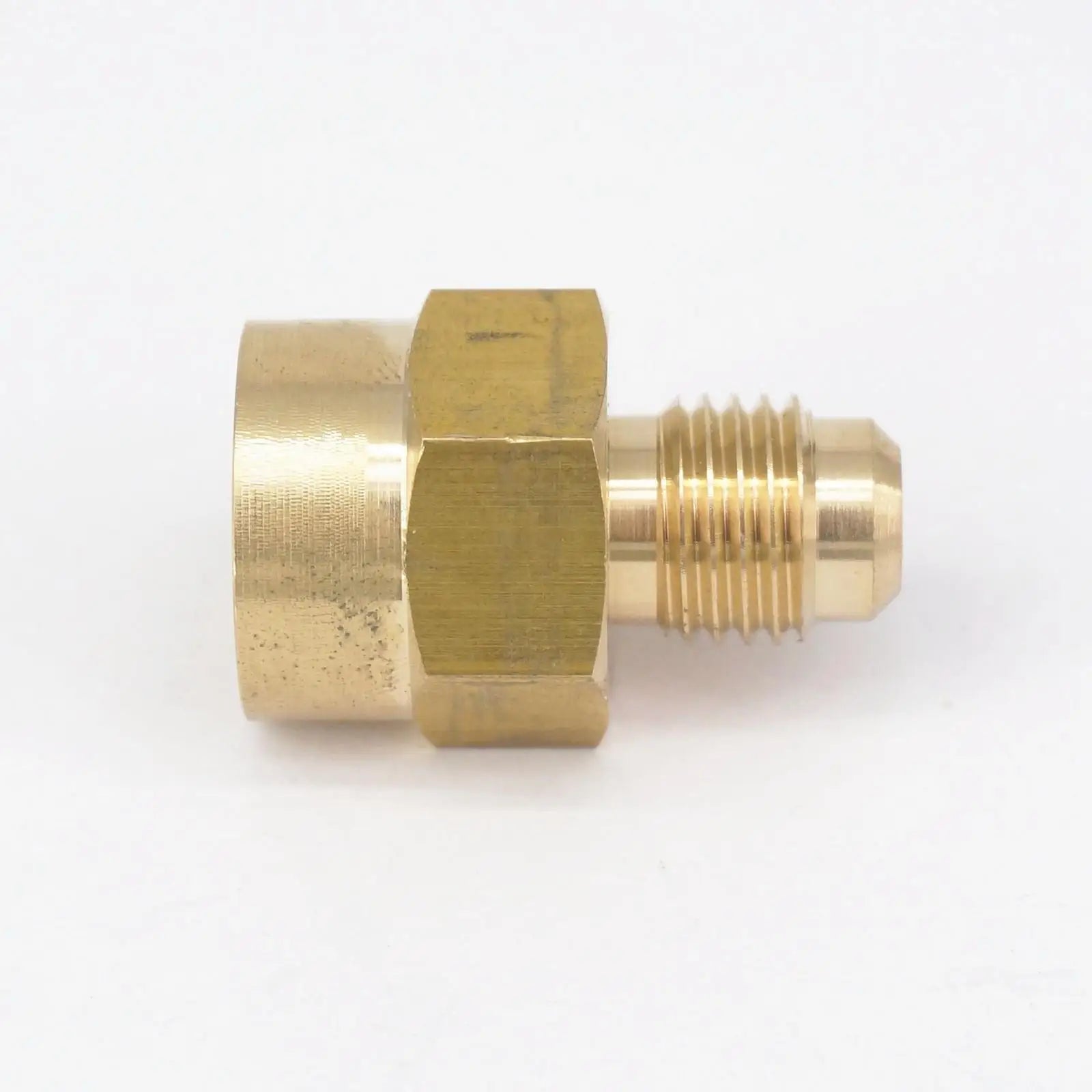

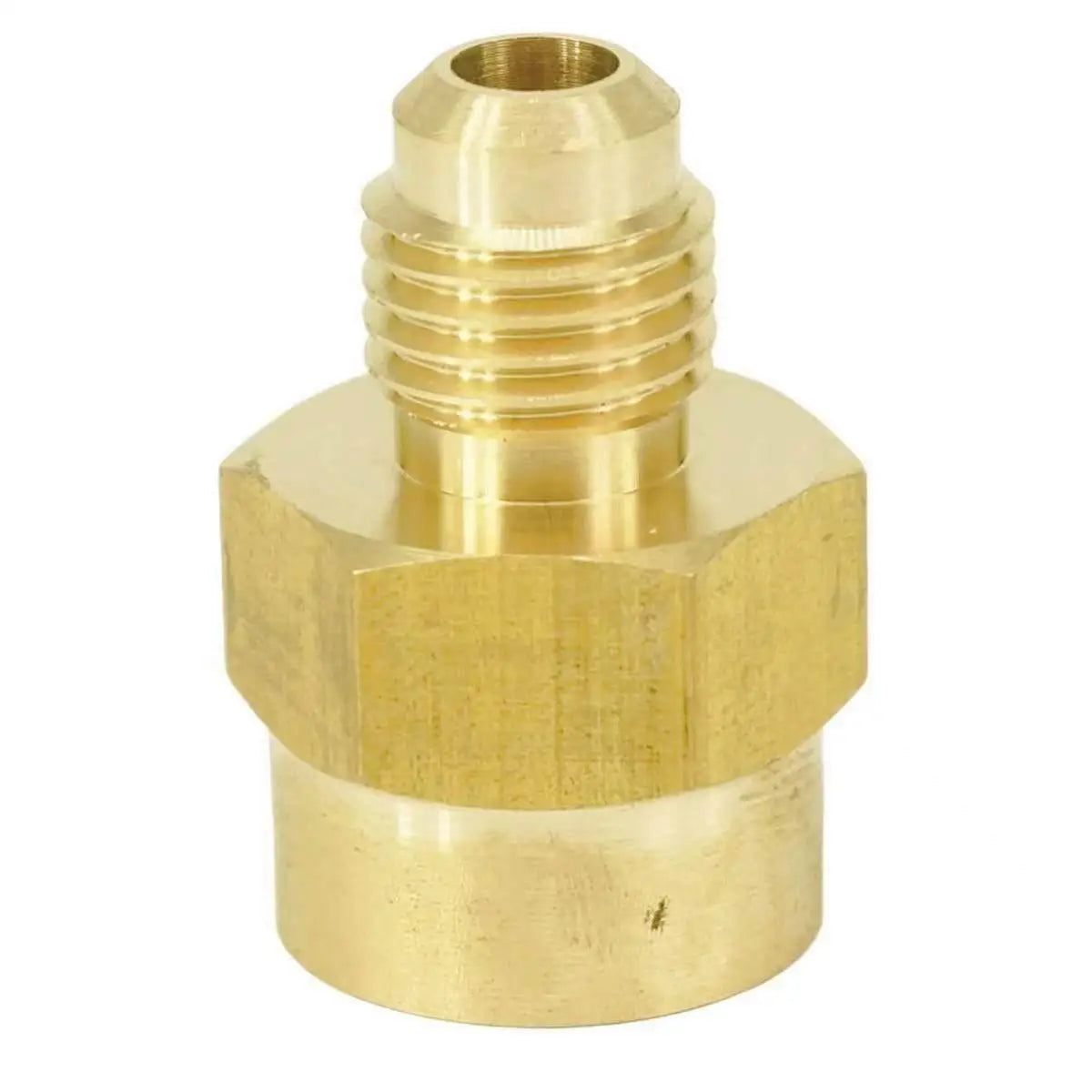

NPT Female Fitting Brass SAE 45° Tube OD Pipe Adapter NPT Connector
SKU:IB-FF00-000-00MY-825
Connect compatible tubing to a threaded pipe port with this NPT Female Fitting Brass SAE 45° Tube OD Pipe Adapter NPT Connector from Index Bath. Designed with a 7/16"-20 UNF SAE 45-degree flare connection for 1/4-inch tube and a 1/4-inch female NPT port, this adapter provides a convenient transition between SAE flare tubing and NPT-threaded equipment.
Made from brass, the fitting offers durable and corrosion-resistant performance for compatible fluid-line applications. The SAE 45° flare design provides a mechanical tubing connection when correctly formed and assembled, while the female NPT side connects to a matching 1/4-inch NPT male fitting.
Features:
- Brass Construction provides durable everyday performance
- SAE 45° Flare Connection designed for compatible 1/4-inch tubing
- 7/16"-20 UNF Thread for the SAE 45° flare connection
- 1/4" Female NPT Port connects to a compatible male NPT fitting
- Tube-to-Pipe Adapter provides convenient transition between different connection types
- Compact Fitting Design helps simplify fluid-line installations
- Versatile Applications for compatible water, air, oil, fuel, hydraulic, and fluid systems
Specifications:
- Material:Brass
- Thread:1/4'' NPT Female
- Fit Tube OD:1/4'' Inch
- Max Pressure:1000 PSI
- Operaturing Temperature:-20-120 C
- SAE Connection: 7/16"-20 UNF
- Flare Angle: 45°
- Tube Size: 1/4" Tube OD
- NPT Connection: 1/4" Female NPT
- Configuration: SAE 45° Tube × Female NPT
- Application: Fluid, Air, Fuel, Oil & Compatible Systems
FLASH SALE! LIMITED STOCK AVAILABLE!
Package Includes:
1 * NPT Female Fitting Brass SAE 45° Tube OD Pipe Adapter NPT Connector
Click "Add to Cart" To Claim Yours!
